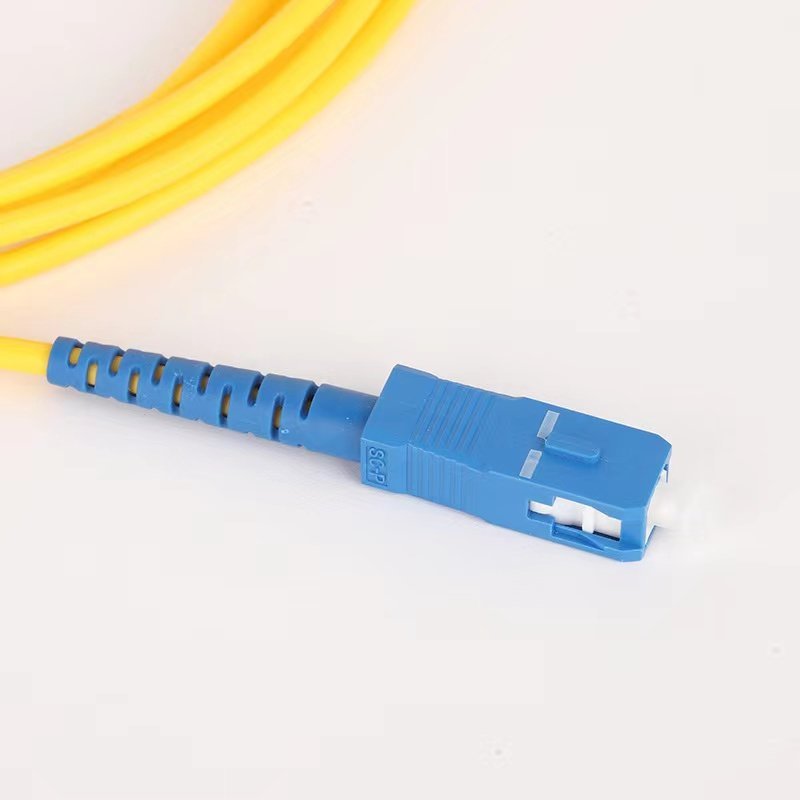

Single Mode Simplex 3.0mm SC-SC Fiber Patch Cord

●High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable
●Grade A Precision Zirconia Ferrule Connectors Ensure Low Loss
●G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
●Optical Testing Ensures Network Performance
●Compliant to TIA-604 (FOCIS)
●All patch cords are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.FC,SC,ST,LC,MU,MTRJ and hybrid Patch Cords are available in both multimode (62.5/125μm and 50/125μm) and single mode cable-types, in duplex and simplex versions

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • SPECIFICATION

Features

●The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient
●It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed
●This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm
●Environmentally stable in optical performance

SPECIFICATION

●Connector type:SC UPC to SC UPC
●Fiber Mode:OS2 9/125μm
●Jacket material:PVC/LSZH
●Fiber Grade:G.657.A1 (Compatible with G.652.D)
●Wavelength:1310/1550nm
●Return Loss (dB):≥50dB
●Insertion Loss (dB):≤0.3dB
●Cable Diameter:3.0mm
●Operating Temperature:-20°C to +70°C
●Storage Temperature:-40°C to +85°C
