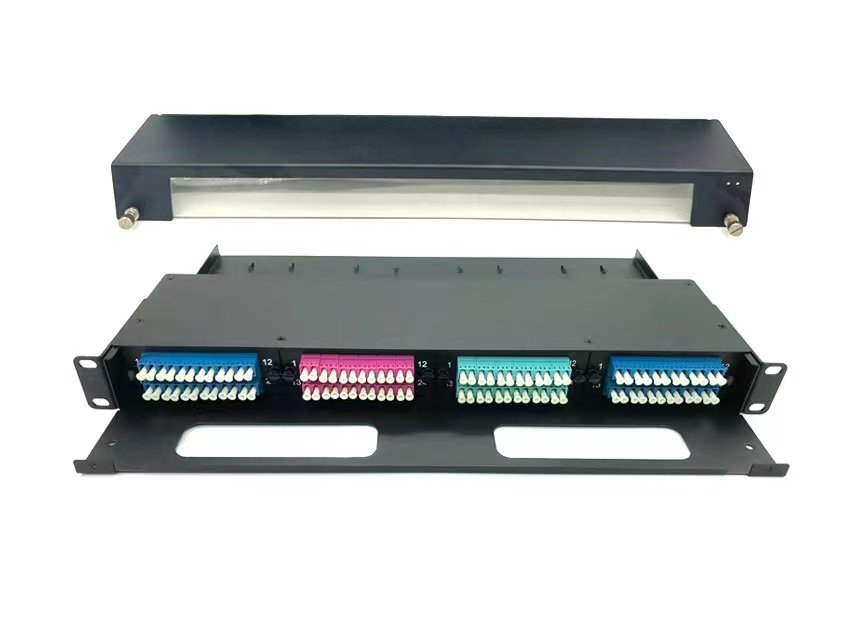

MTP/MPO Fiber Optic Patch Panel

●High Density fiber patch panels are designed to accommodate high density applications in Data Centersand Telecommunication environments. This factory pre-populated and tested Fiber Patch Panel saveson-site installation time and increase reliability
●This MTP/MPO patch panel adopts uttra-thin design,it hoids up to 144 tibers in 1U space,which can maxmize the utilization of rackspace resources. Mainly used for high density fiber optic cabling systems,fast cabling systems,backbone networks,high integrated equipment and devices,data centers.SAN systems,etc.Suitable for small to medium-sized wiring systems such as fiber to the community,fiber to the building

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL
SPECIFICATION

Features

●UP to 288 Fiber
●Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
●Available in SM, OM1, OM2, OM3 and OM4 fiber grades
●Flat Front Panel for Optimal Cable Routing
●Removable Top for Easier Fiber Cable Management
●Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
●Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
●100% factory terminated and tested
●MPO/MTP components feature superior optical and mechanical properties

SPECIFICATION

●Fiber Mode :SM: OS2 9/125μm; MM: OM3 50/125 μm; OM4 50/125 μm
●Front Connector:SM:LC Connector With UPC/APC Polish;MM: LC Connector With UPC Polish
●Rear Connector :SM: MPO/MTP Connector With Male Ferrules And PC Polish; MM: MPO/MTP Connector With Male Ferrules And APC Polish
●Rear Adapter :MPO/MTP Adapter,The Key In Different Directions
●Operating Temperature:-20℃ to +60℃
●Storage Temperature:-40℃ to +70℃
●Humidity:90% at 30℃
●Air Pressure:70kPa – 106kPa
