Cat.6A S/FTP Shielded And Foiled Twisted Pair Solid Lan Cable, 500MHZ

●3P lab,verified ISO/IEC11801-1,EN50173-1,ANSI/TIA-568.2-D,IEC61156-5 and EN50288-10-1 Cat.6A 100m cable performance
●Farsince CAT6A S/FTP Shielded and Foiled Ethernet installation cable, is ideal for for high performance data communications for voice, data, video and security capabilities.
●Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer
●Support 10-Gigabit Ethernet netword transmission requirement and allows for faster bander with up to 500MHz Composed

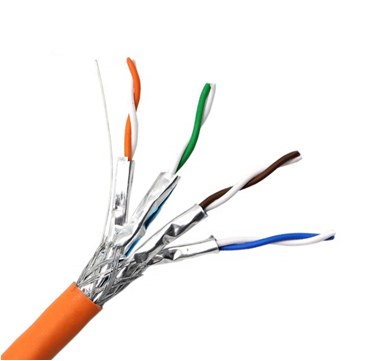

●Four individually shielded pairs of 23AWG solid bare copper conductors,with an overall Aluminum Magnesium Alloy braid shield, in order to repel electromagnetic interference (EMI) in electrically noisy environments

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Specification

Features

●S/FTP
●23AWG 0.59mm Solid Oxygen-Free Copper,
●Foam-Skin insulation, Tinned copper braiding
●PVC/LS0H/LSZH/PE Jacket Options
●More color options
●Tested by Fluke and Network analyser
●ROHS/REACH Compliant
●Construction products regulation(CPR)EuroClass Eca
●Fire resistance rate: CMP, CMR,CM optional

Standard Compliance

●ISO/IEC 11801-1
●EN 50173-1
●IEC 61156-5
●ANSI/TIA-568.2-D
●IEC 60332-1-2
●IEC 60332-3-24
●IEC 60034-2
●IEC 60754-2
●EN50288-10-1
●UL444(for UL CM/CMR/CMP PVC jacket material only)

Specification

●Conductor : 23AWG (1/0.59mm), Solid Bare Copper
●Insulation: PVC/LSZH
●Shielding: Twisted pair shielding by aluminum foil
●Outer Diameter: 6.9 ± 0.2mm
●Installing Temperature:0℃ to 50℃
●Storage Temperature:-40℃ to 60℃
●Operating Temperature:-20℃ to 75℃
●UL Temperature Rating:75℃
●UL Cable Voltage Rating:300V (UL444)
●Jacket Options: PVC, LSZH, Vertical Tray(CM), Riser(CMR), Plenum(CMP), PE (Outdoor)
●Color: Orange/Grey/Yellow/White/Blue/Black or Customized
●Packaging Details:305 meters/1000 feet or 500meters in a wooden reel or plastic reel
